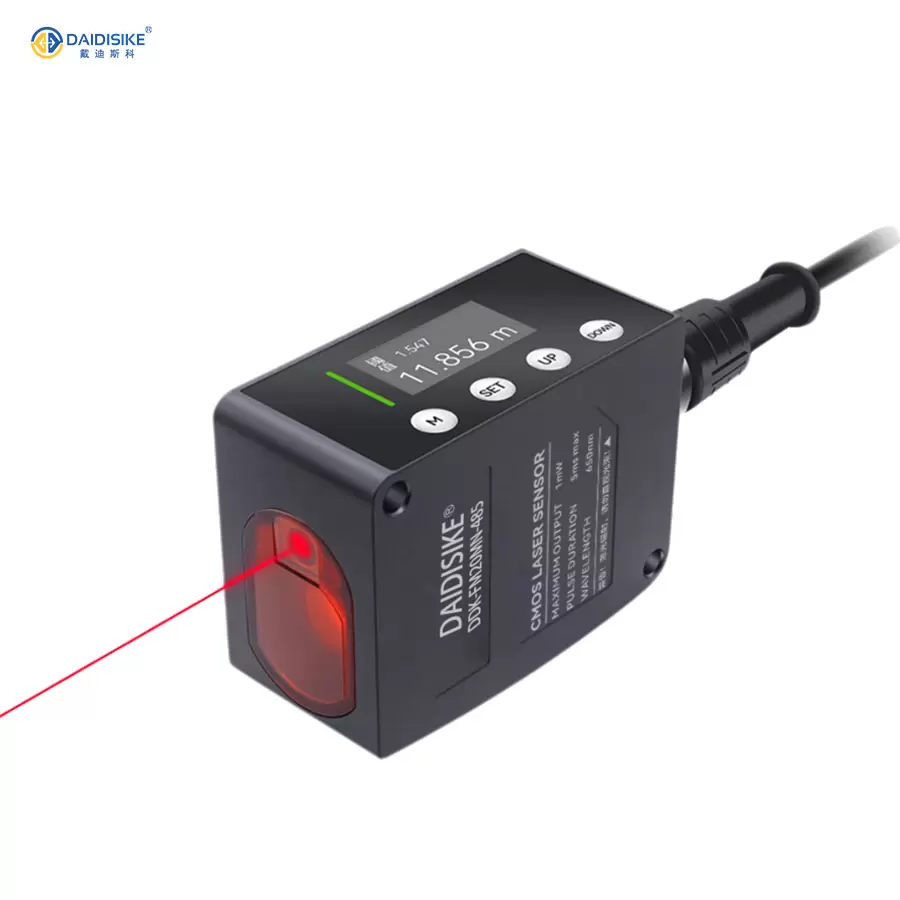

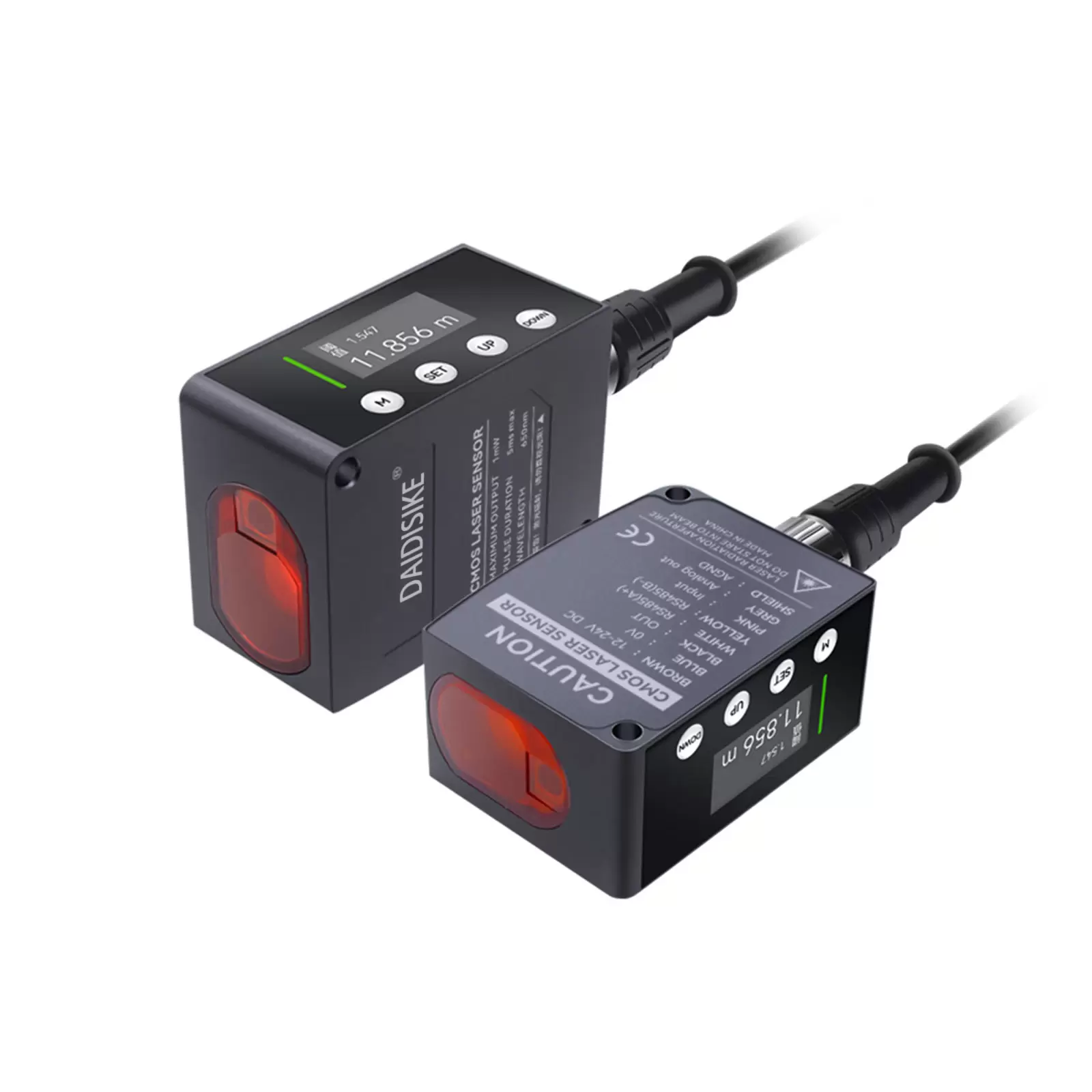

The high-precision laser displacement ranging sensor adopts the TOF time-of-flight principle and is suitable for long-distance ranging from 0.1-50m. Multiple models are available (0.1-1m/2m/5m/10m/20m/50m), with a resolution of up to 1mm. The red semiconductor laser light source ensures stable and reliable measurement. Supports NPN/PNP open electrode output, while providing 4-20mA, 0-5V analog signals and RS485 communication interfaces, which can be directly connected to PLC, frequency converter, servo or upper computer systems. The response time is 50-200ms, meeting the real-time control requirements of conveyor line height detection, stack positioning, material level monitoring, AGV/three-dimensional warehouse and other working conditions. The product has a protection level of IP67, an aluminum alloy shell, strong anti-interference ability, and is suitable for industrial environments of -10~+45 ℃. It comes with a 2m eight core cable, which is easy to install and connect. It is an ideal choice for long-distance position and displacement detection of various automated production lines.
